The application scope of radiant pole circular permanent magnet chuck: It is suitable for grinding of small vertical surface grinder, cylindrical grinder, inner cylindrical grinder, light cutting of lathe, etc.
Main technical parameters of radiant pole circular permanent magnet chuck: (1) suction > 180N/cm(2) remanence < 10% of suction at corresponding points
Minimum Specification and Maximum Specification: Minimum Specification: Diameter 100 Maximum Specification: Diameter 600
Method of using radiant pole circular permanent magnet chuck:
1. Place the workpiece on the working table of the sucker, then insert the wrench into the hole of the shaft and rotate 180 to ON clockwise, so that the workpiece can be absorbed for processing.
2. After the workpiece is processed, the wrench is inserted into the shaft hole and rotated counterclockwise 180 to OFF to remove the workpiece.
Maintenance and maintenance of radiant pole circular permanent magnet chuck:
1. Before using the sucker, the surface should be cleaned to avoid scratching affecting the accuracy.
2. Use the ambient temperature at - 40C - 50C. Strike is strictly prohibited to prevent magnetic force from decreasing.
3. Coat the working face with anti-rust oil after use to prevent rust.

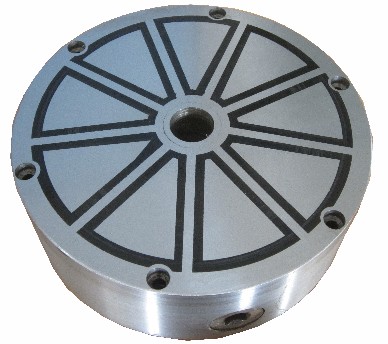

Product Name: Radiant Polar Circular Permanent Magnet Sucker
Product performance: Radiant pole circular permanent magnet chuck is suitable for grinding of small vertical surface grinder, cylindrical grinder, internal grinder and light cutting of lathe. The whole panel structure can keep the disk high accuracy and small change.
Product features:
(1) It can be installed in rotary grinding machine.
(2) It is suitable for precision grinding of small and thin workpieces.
(3) Low residual magnetism.
(4) It can improve grinding of thin workpieces.
(5) It can adjust magnetic strength appropriately.

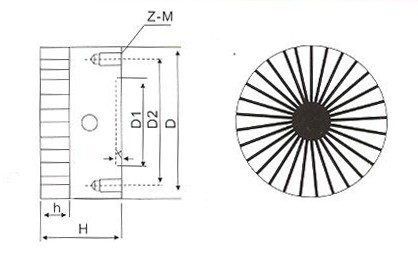

Product Specification:
|
model |
size |
|
KG |
|
D |
H |
h |
D1 |
D2 |
K |
Z |
M |
Radiant pole |
|
XF51 200 |
200 |
76 |
18 |
160H7 |
180 |
4 |
4 |
M10 |
18 |
|
XF51 250 |
250 |
76 |
18 |
200H7 |
224 |
4 |
4 |
M10 |
28 |
|
XF51 300 |
300 |
76 |
18 |
230H7 |
260 |
4 |
4 |
M10 |
35 |
|
XF51 350 |
350 |
76 |
18 |
280 |
315 |
4 |
4 |
M12 |
45 |
|
XF51 400 |
400 |
76 |
18 |
300 |
370 |
4 |
4 |
M12 |
60 |
|
XF51 450 |
450 |
76 |
18 |
365 |
450 |
6 |
6 |
M12 |
75 |
|
XF51 500 |
500 |
76 |
18 |
430 |
520 |
6 |
6 |
M12 |
105 |
